SITRANS FM MAG 3100
Process Instrumentation
Electromagnetic flow meter sensor

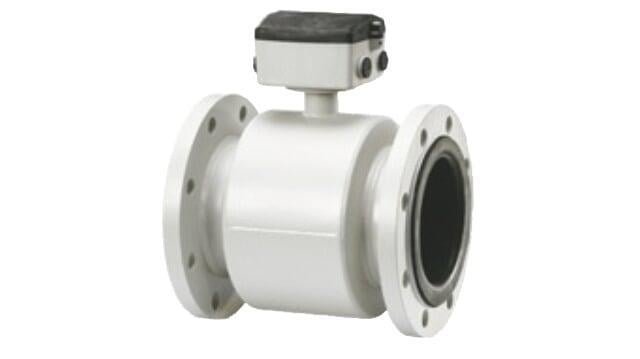

SITRANS FM MAG 3100 from Siemens USA is an electromagnetic flow sensor with a large variety of liners, electrode material and with grounding electrodes as standard. Electrodes capable of withstanding the most extreme processes and various liners are also available. The fully welded construction provides a ruggedness that fits almost every flow application.
SITRANS FM MAG 3100 Catalog
specifications
In order to have a complete flowmeter please combine it with one of the following MAG transmitters:
Needs Link -SITRANS FM MAG 5000: Cost efficient transmitter, accuracy of + 0.4 % of flow rate
Needs Link -SITRANS FM MAG 6000: Bus communication, batch function and accuracy of + 0.2 % of flow rate
Needs Link - SITRANS FM MAG 6000 I: Alu enclosure, Ex approvals, bus communication, batch function and accuracy of + 0.2 % of flow rate
Application Examples: Process industry, Chemical industry, Steel industry
Benefits
Flexible sensor program with several pipe dimensions available and additionally liner and electrode options
Approvals for PTB, OIML R 75, OIML R 117, ATEX, NSF/ANSI Standard 61, WRAS
Designed to allow patented MAG in-situ verification using the SENSORPROM fingerprints
Approved for hazardous areas
Detail
| Measuring range | 0 to 10 m/s |
|---|---|
| Nominal sizes | From DN 15 to DN 2000 (½" to 78") |
| Accuracy | 0.2 % ±1 mm/s |
| Operating Pressure | Max. 100 bar (Max. 1450 psi) |
| Ambient temperature | From -40 to 100 °C (-40 to +212 °F) |
| Medium Temperature | From -40 to 180 °C (-40 to 356 °F) |
| Liners | Neoprene EPDM PTFE PFA Ebonite Linatex |
| Electrodes | AISI 316 Ti (1.4571) Hastelloy C Platinum/iridium Titanium Tantalum |
| Material | Carbon steel (or AISI 304) with corrosion resistant two component epoxy coating or AISI 316 L polished flanges and housing |
| General approval | E.g.: ATEX, FM, CSA, CT and Drinking Water approvals |
